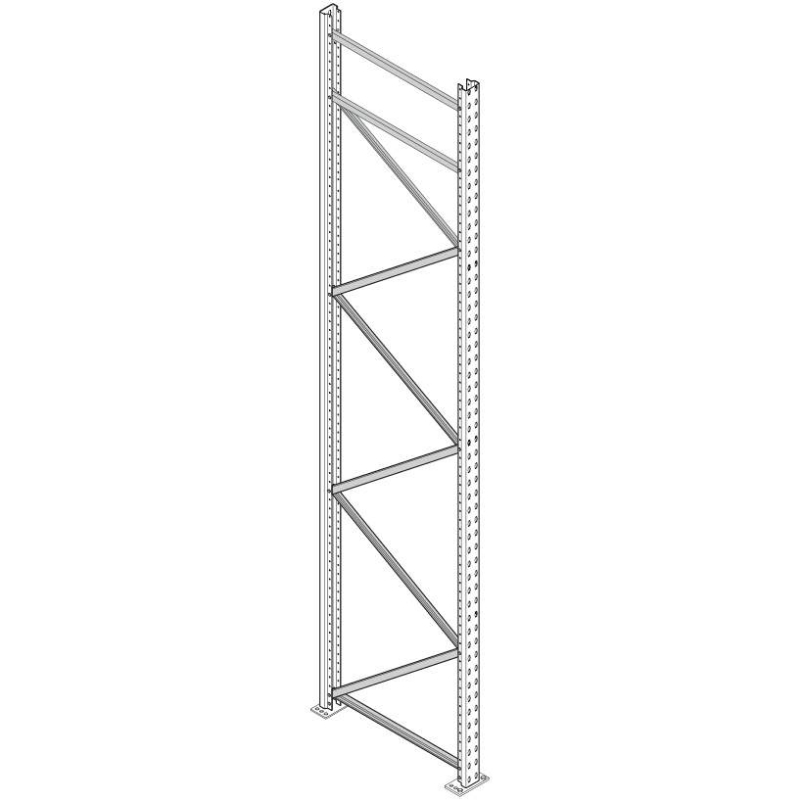

Link51 XL Pallet Racking Frames

Link51 XL Pallet Racking Frames.  Frames are normally supplied KD for self assembly on site.

There are over 450 variants of frame, so not all listed. We are only showing ‘Normal Master’ frames.

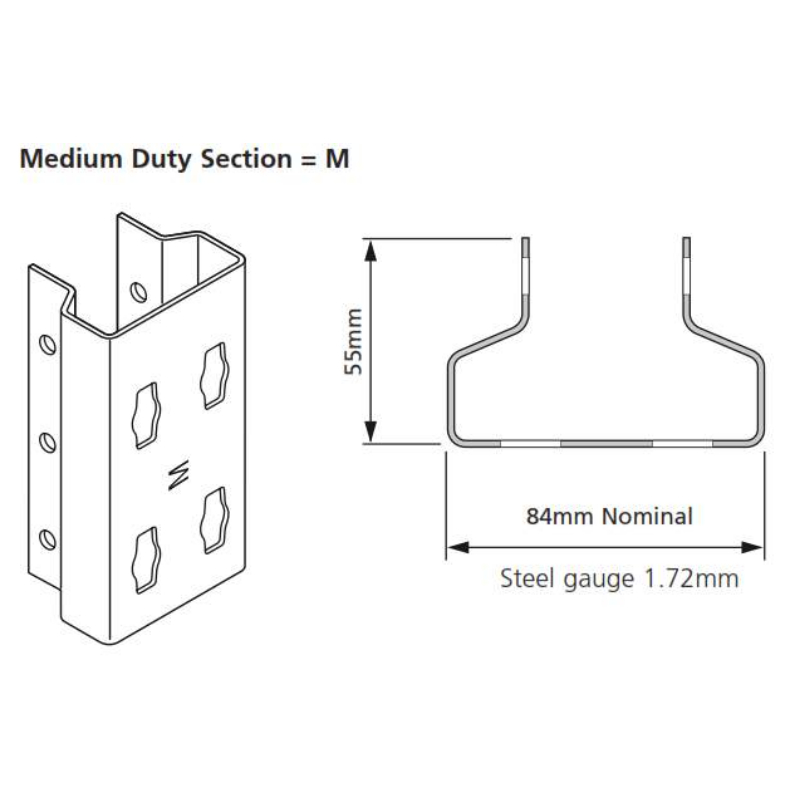

• M = Medium Duty

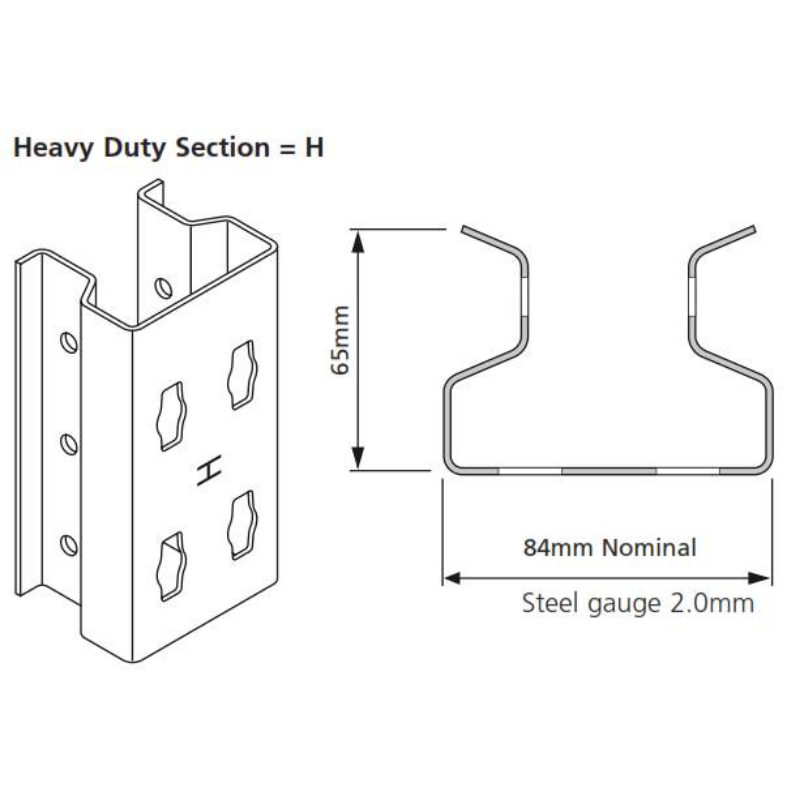

• H = Heavy Duty

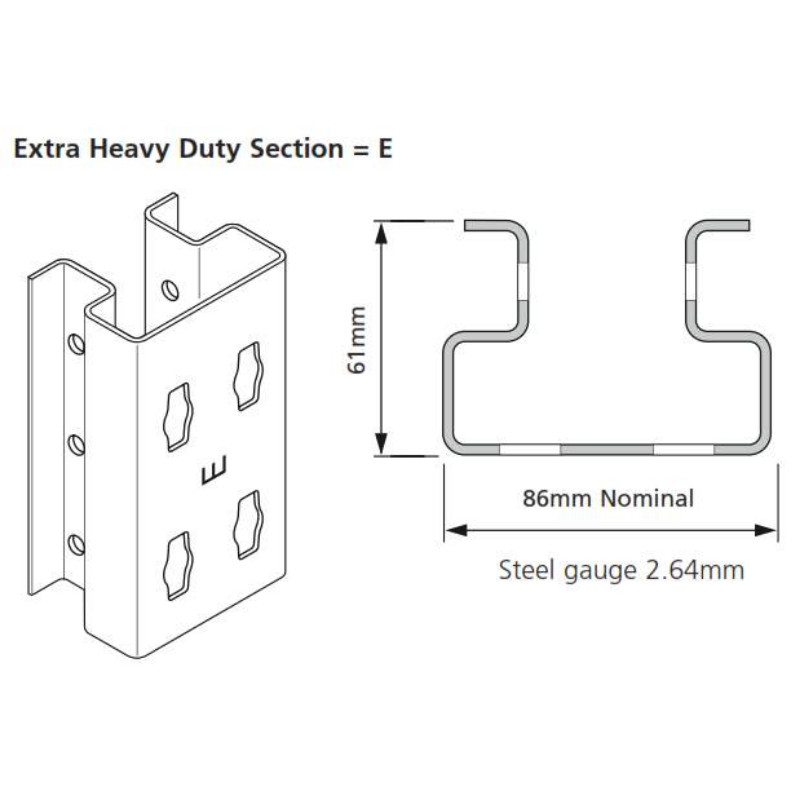

• E = Extra Heavy Duty

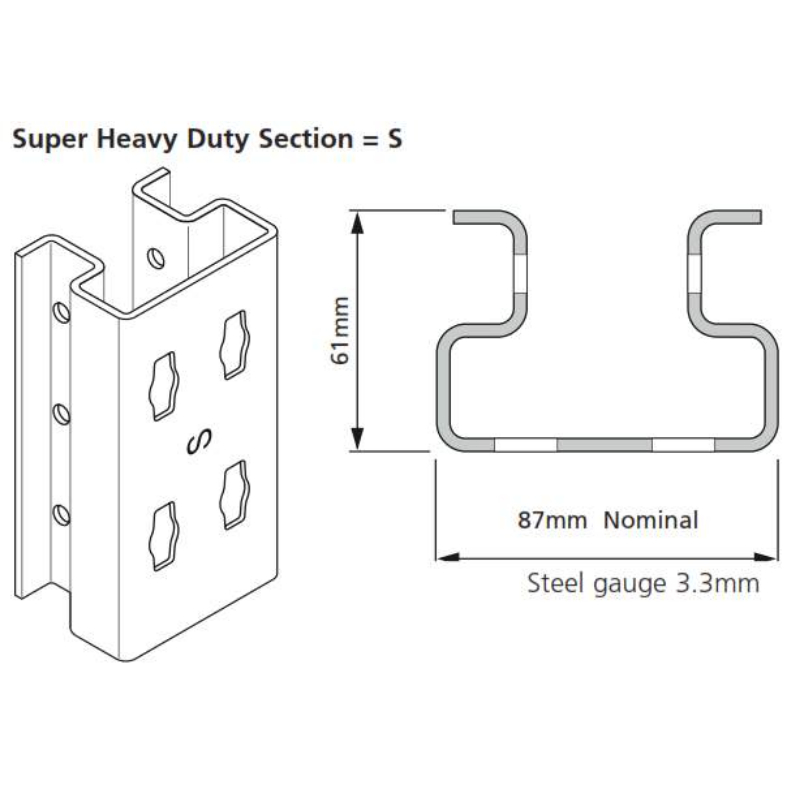

• S = Super Heavy Duty
• Standard heights from 1050mm to 6450mm, in 150mm increments, Taller heights and spliced frames price on application.
• Standard depths 800mm, 900mm, 1000mm, 1100mm, 1200mm, and 1500mm, Other depths available price on application 600mm, 750mm, 1350mm etc

Pallet racking is a dynamic load structure, load capacity depends on many factors: Frame duty, Footplate type, Single or multi bay, Single or multi level, Height to 1st 2nd and 3rd beam, Beam length, Beam profile, Internal, External, Additional loads from mechanical or automated handling systems.  Each load calculation should be detailed on its own merits.

Please note there are some applications such as single level, runs of less than 3 bays, height to depth ratio greater than 8:1, pallet live, push back, that require an upgrade to the B3 Footplates being double bolted to the floor.
