A023 PU Dock Bumper 750x260x115mm

Approx Dims: 760 x 270 x 110 mm

Weight: 46 kg

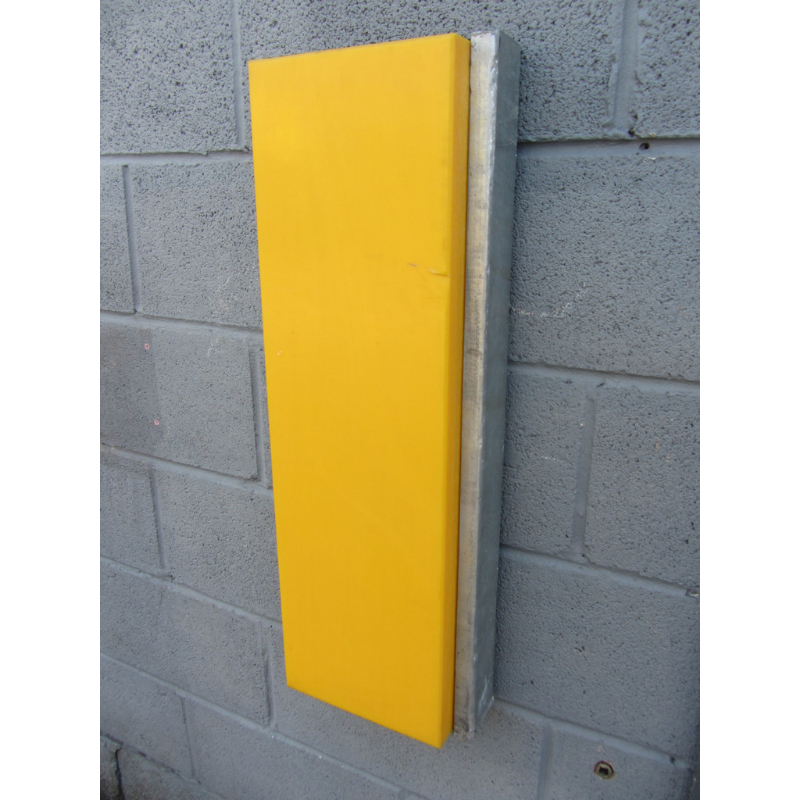

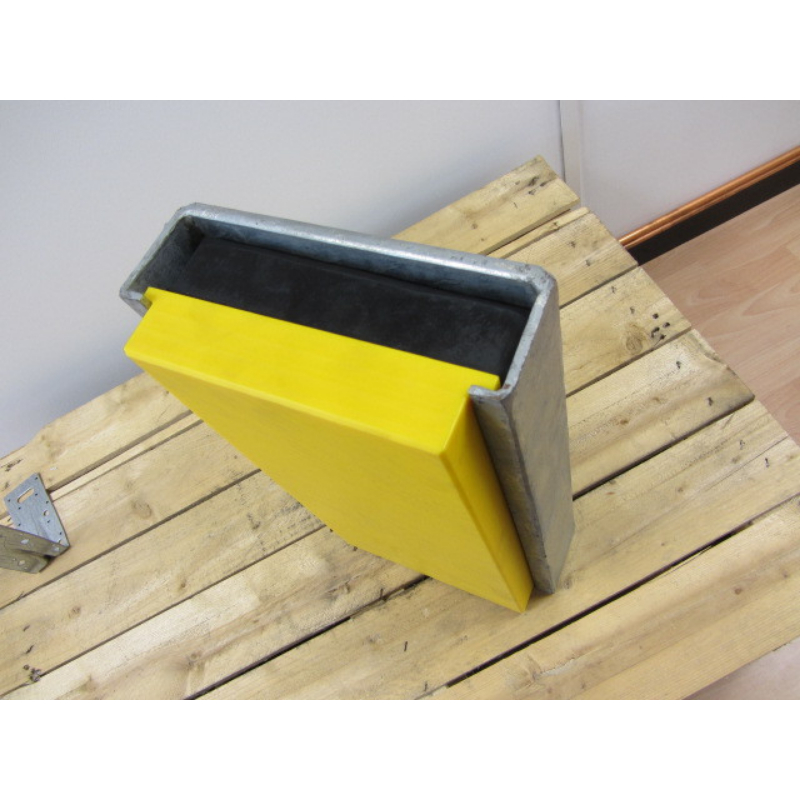

The A023 Dock Bumper has a large impact area with no holes in the UHMWPE face plate for the back of the truck to snag on. The 50mm thick face can slide freely up and down in its steel cradle back plate.

The 2 middle photos show this part used in conjunction with part A061 Angle Bracket to help protect against trailers that over-ride the dock leveller.

Compresses 11mm under 15 tonne load.

This assembly does not include fixings:
It can be fitted using 6x A301 and 2x A476. (Not Included.)
